DYNAMIC ANALYSIS
Dynamic modeling in structural analysis has become increasingly relevant as standards have become more and more rigorous in the subject. Furthermore, the extensive use of economical, lightweight buildings requires increasingly accurate dynamical analysis. These topics are addressed by the dynamic and footfall modules in AxisVM.
DYN GENERAL DYNAMIC ANALYSIS
In the case of dynamic analysis, the program determines the displacements and internal forces of the structure for each time step, corresponding to the defined dynamic loads. The analysis can be carried out by considering linear or nonlinear material behavior. Geometric nonlinearity can also be considered.
The following dynamic actions can be applied:

dynamic point load acting on a node, domain, or load panel

distributed surface load on a domain or load panel

node or nodal support acceleration
With these dynamic loads, the DYN module is able to conduct timehistory analysis (e.g. earthquake), shock wave analysis (e.g. blast), and forced vibration analysis (e.g. machinery).
Requirements: in order to perform nonlinear dynamic analysis, the nonlinear (NL) basic package is needed
DESIGN CODES
CHARACTERISTICS
➡ the time integration is carried out by the Newmarkbeta implicit numerical method
➡ geometric and material nonlinearity can be taken into account
➡ the dynamic load functions can be defined by either numerical data at sampling points, or by analytical functions
➡ the intermediate points of the load function can be determined with linear or WhittakerShannon interpolation
➡ the accelerograms can be corrected in order to obtain zero end speed and displacement
➡ the internal forces can be used in standardized design procedures, with caution
DETAILS

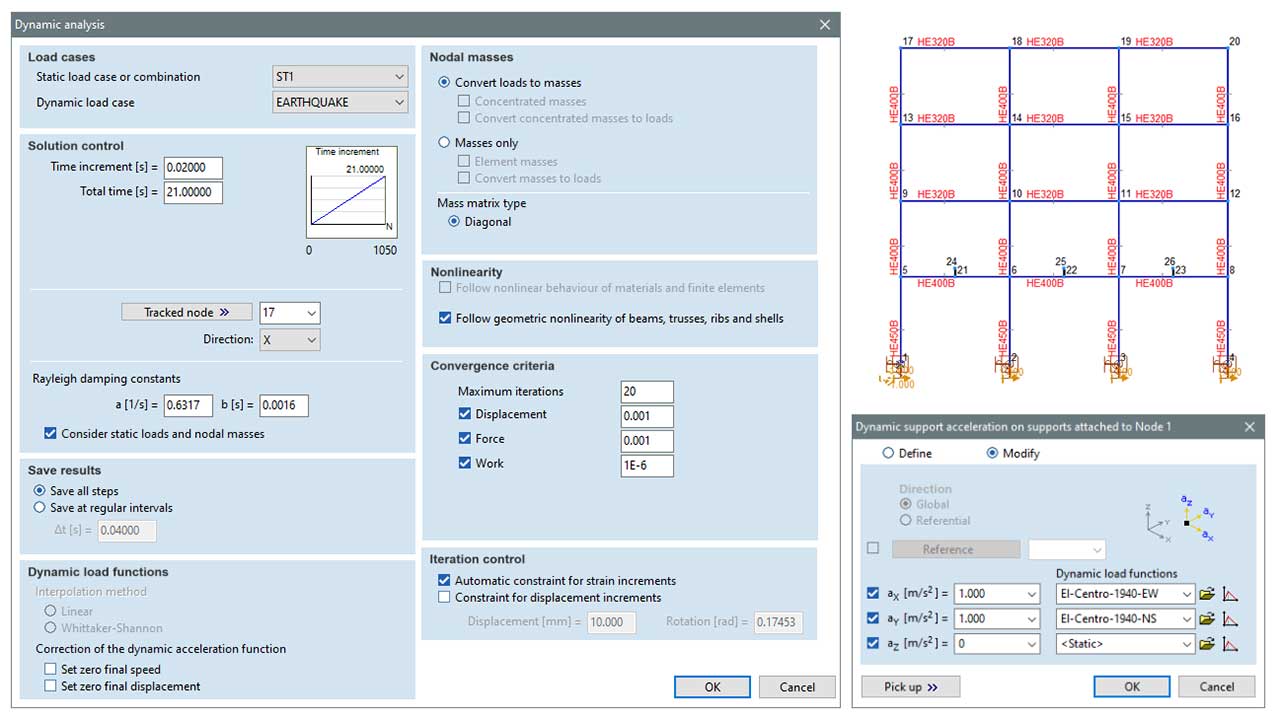

THE PARAMETERS OF DYNAMIC ANALYSIS
In the dynamic analysis, a static and a dynamic load case can be considered. The results are stored at every time step, or at specified time steps. In addition, the correction of the load function and interpolation method, as well as the nonlinearity and convergence criteria, can be set.

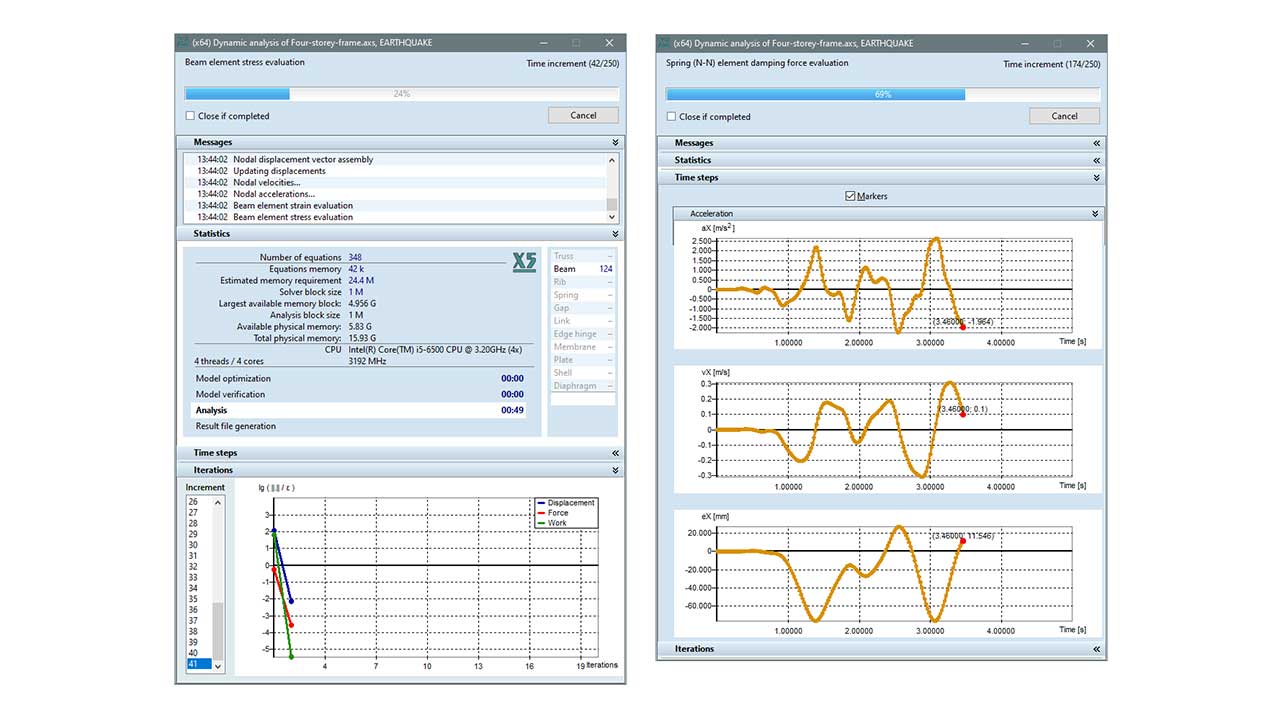

RUNTIME MONITORING
The movement (displacement, velocity, acceleration) about a nodal degree of freedom can be monitored during analysis, which can reveal certain structural behavior during the analysis.

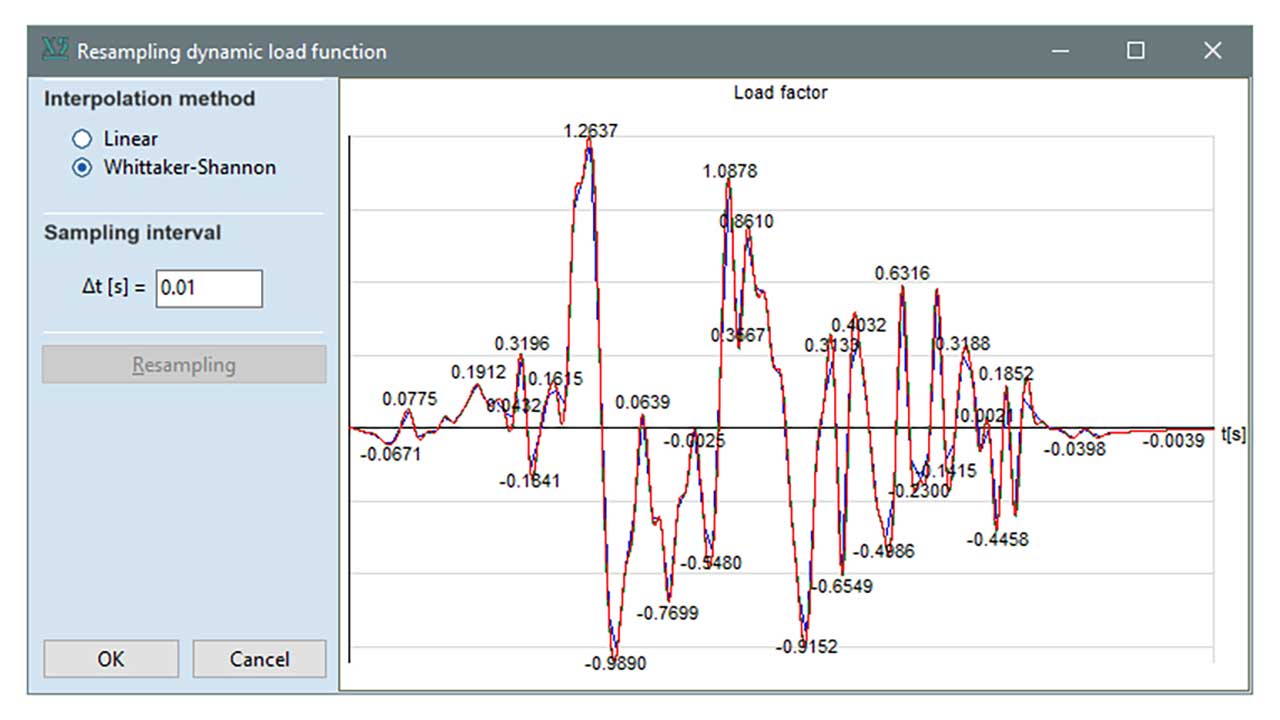

THE INTERPOLATION OF LOAD FUNCTIONS
If the sampling points of the load function are not coinciding with the time steps, the program interpolates the function value at a given instance of time with linear interpolation or with the WhittakerShannon formula. The latter can approximate a continuous function, which is better discretised with uniform time steps.

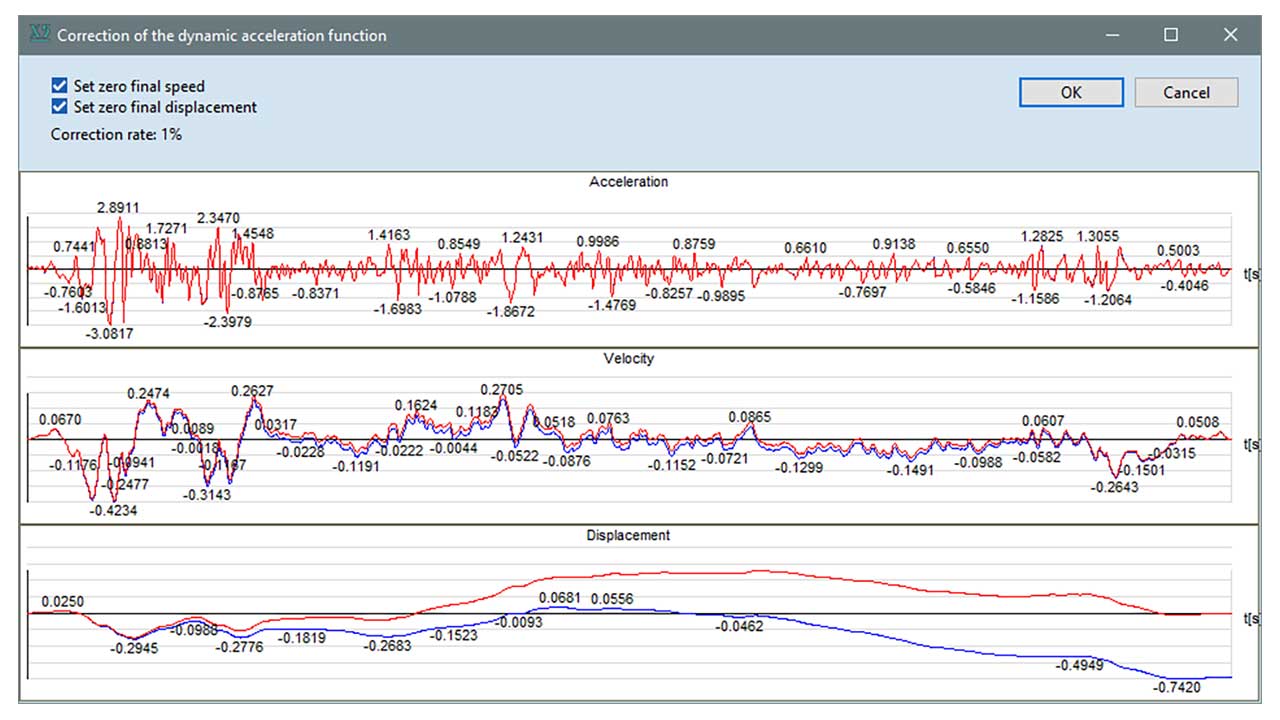

THE CORRECTION OF EARTHQUAKE ACCELEROGRAMS
The real (recorded) accelerograms can be modified. Due to measurement error, the recorded acceleration data does not result in zero end speed. The applied algorithm modifies the original acceleration in order to obtain zero end velocity and displacement.

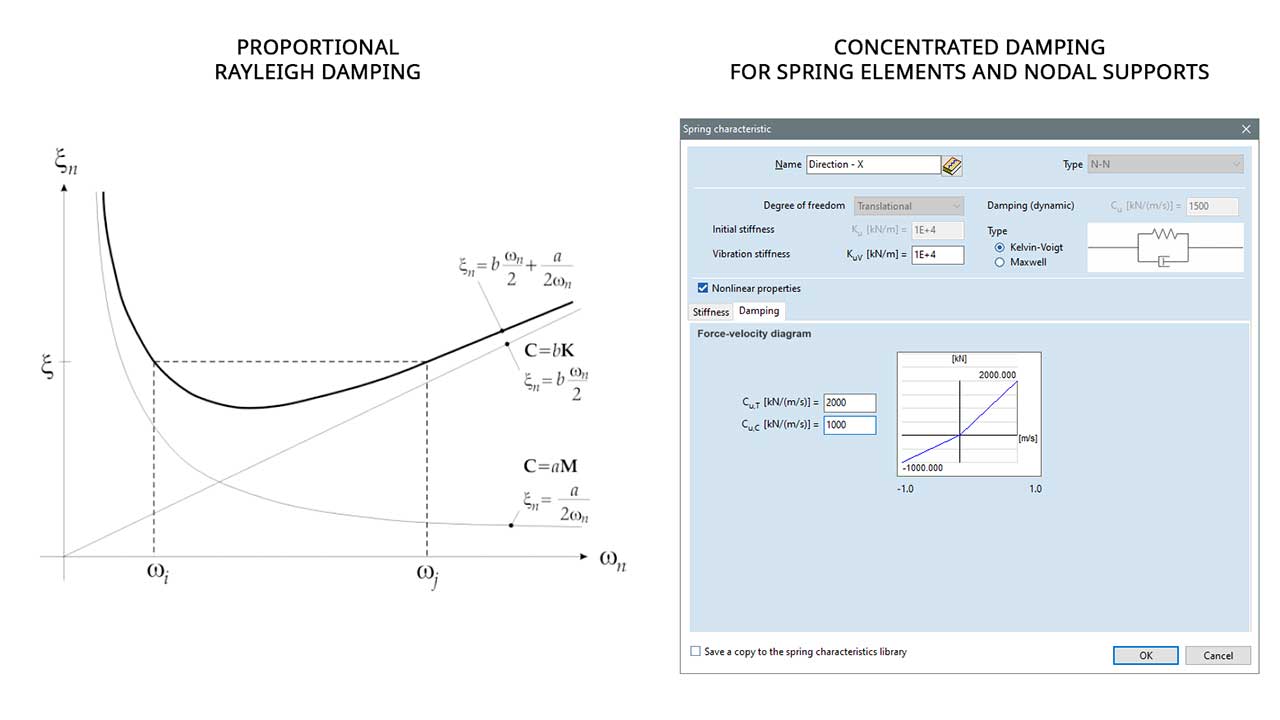

DAMPING
The structural damping is taken into account using proportional, Rayleighdamping. Nodal damping can be taken into account with spring and dashpot elements. Bilinear characteristic can be considered according to the Maxwell or Kelvin model.
PRESENTATION OF THE RESULTS
The computed kinematic results (displacements, velocities, accelerations) and internal forces and moments can be presented (plotted) as a function of time or as a function of any other timedependent result.

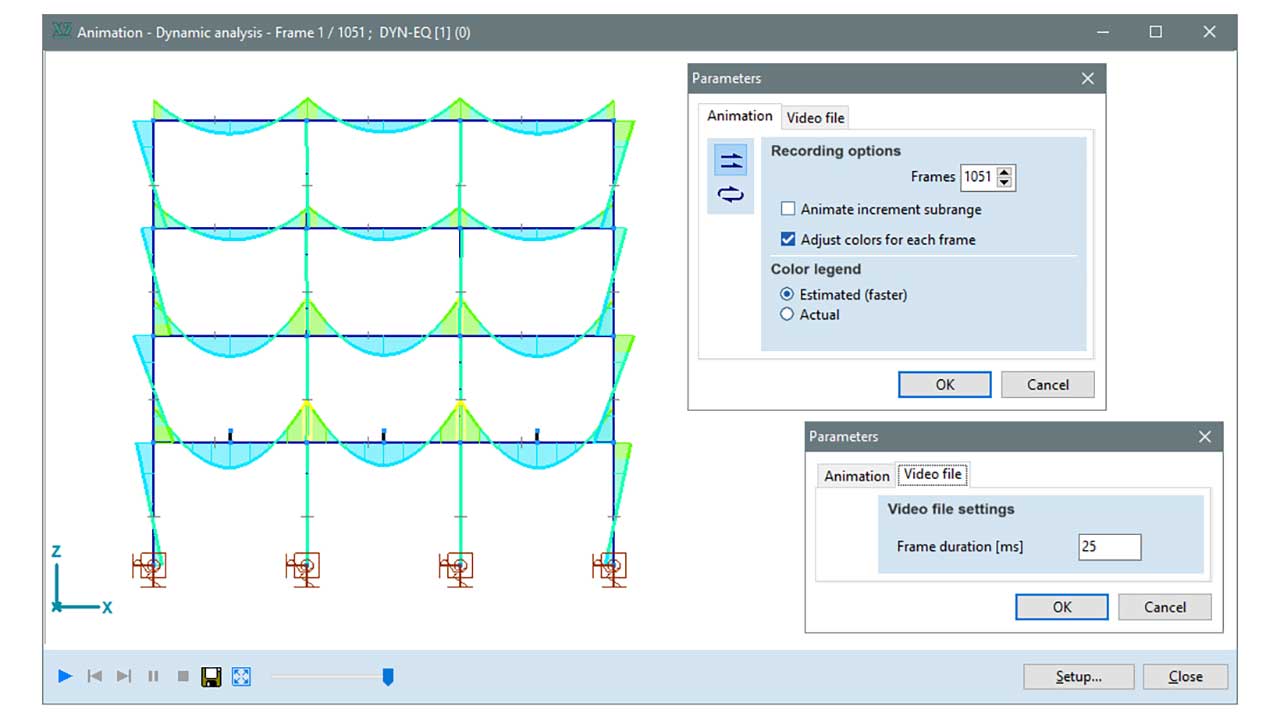

ANIMATION
Animations can be displayed for timedependent changes of any result component and can be saved as a GIF or AVI file type. The speed of replay can be adjusted and arbitrary subdomains can be chosen for the animation.
FFA CALCULATION OF VIBRATION RESPONSE FACTOR FOR SLABS
Nowadays, the costefficiency and ease of assembly of buildings and bridges have become more important. A possible consequence of this is a considerable decrease in structural weight. However, the dynamic effect of moving masses is typically larger on lightweight buildings. As a result, the buildings’ serviceability can be significantly restricted, due to disconcertingly large accelerations. In order to restrain the large accelerations, it is inevitable to control the vibrational serviceability limit state, for which the footfall analysis is a modern approach. A corresponding procedure has been implemented into the AxisVM software.
Requirements: a basic package with surface elements is required (e.g. L3S, NL3P)
DESIGN CODES
CHARACTERISTICS
➡ the following two recommendations are built into the software:

Willford, M.R., Young, P. A Design Guide for Footfall Induced Vibration of Structures, Concrete Society, 2006

Smith, A. L., Hicks, S. J., Devine, P. J. Design of Floors for Vibration: A New Approach, The Steel Construction Institute, Ascot, 2009
➡ the analysis can only be performed on floors (the angle between the domain’s normal vector and the direction of gravitation is less than 10°), and stairs (the angle between the domain’s normal vector and the vertical direction is between 10°70°)
➡ only linearly elastic structures can be considered
➡ before the calculation, a vibration analysis must be performed
➡ the footfall load excites only the nodes of surface elements; the nodes of line elements are not considered in the procedure
➡ the method does not consider the horizontal component of the footfall load, which can have significant effect on the vibration of bridges. Therefore, the process is only capable of handling the vibration of buildings’ floors and stairs
DETAILS

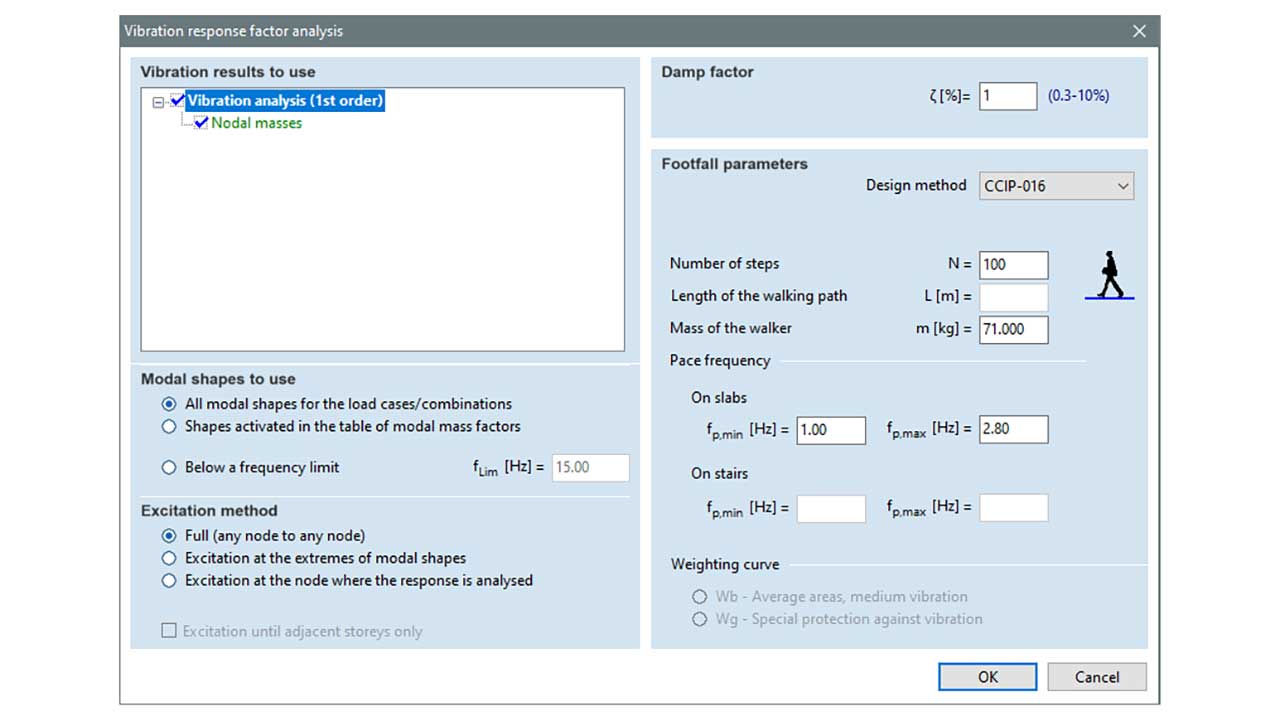

PARAMETERS OF FOOTFALL ANALYSIS
The analysis can be adjusted with different parameters, depending on the nature of the problem. The user can select the modes, type of excitation, damping ratio, and the footfall parameters.
VIBRATION TYPES
In the case of footfall induced vibrations, the response of the system consists of two parts, namely: the transient part and the steadystate part. Fundamentally, the characteristic shape of the vibration can be one of these two types. For the most part, the stiffness of the structure and the duration of the excitation determine which type of vibration is dominant.
The user can choose between these two recommendations:

CCIP016

SCI P354

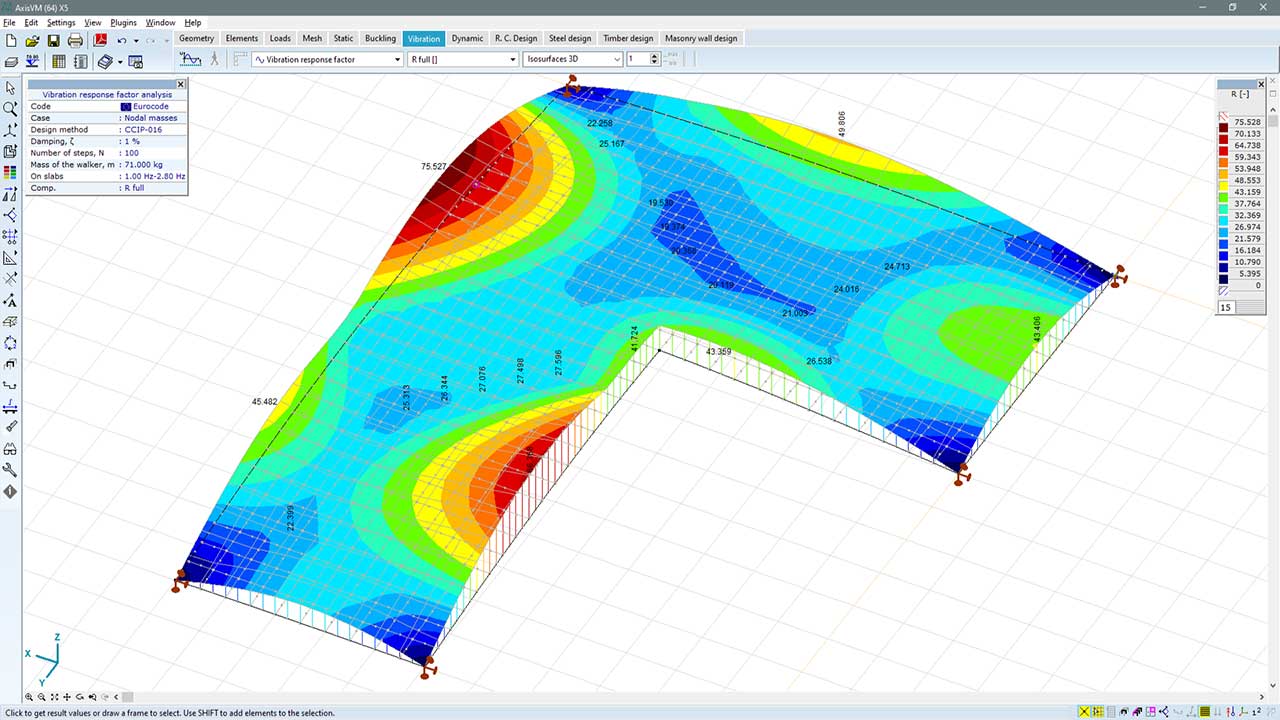

"R" RESPONSE FACTOR RESULT COMPONENT
The vibration response factor result shows the envelope function of the response factor due to human induced vibration. The response factor is proportional to the maximum of the structural acceleration, thus the user can find the location and value of the largest acceleration.

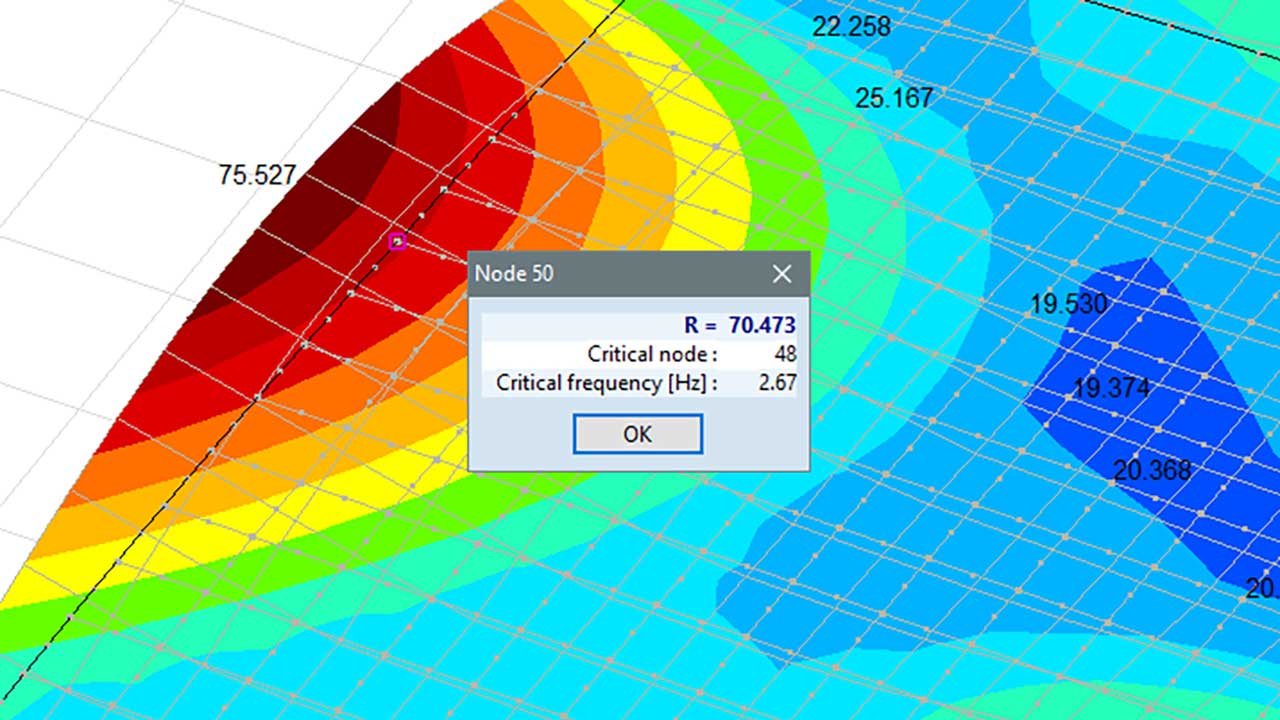

NODAL RESULTS
Once the results are available, the user can obtain the response factor, the location of the critical excitation (index of the node) and the critical frequency for each node.
