Masonry structures are one of the most traditional types of construction, but their design often encounters difficulties due to uncertainty and modelling issues. AxisVM provides practical assistance with these by automating the most common design steps. The module covers the entire design process, allowing for interactive and streamlined work and for the possibility of quick documentation.
MD1 -DESIGN OF MASONRY WALLS
This module allows for the comprehensive design of unreinforced masonry walls subject to mainly vertical loads and shear. Walls can be analysed either as a single wall or as a complex multi-storey wall segment. A unique feature of the module is the ability to specify the detail of the end joint of the walls (wall-slab connection) which can significantly impact the load-bearing capacity of the wall. Different types of approximation methods are offered for the calculation of additional bending moments due to the effect of eccentric joints, which significantly simplify the modelling. The complex interactive user interface and the detailed design calculations make the verification process transparent and efficient.
Note: design of masonry walls requires configuration 2 or 3 (e.g. L2S, NL3P)
➡ design of unreinforced masonry walls
➡ available design procedures:
stability verification of walls subjected to mainly vertical walls
complex shear design of bracing walls
➡ comprehensive analysis of single and multi-storey wall segments
➡ only vertical walls which have effective lateral support on each storey can be verified
➡ automatic generation of design parameters and detection of the connected reinforced concrete slabs and wall openings
➡ the joints (slab and wall) can be defined by setting the parameters of typical (eccentric effects of the joints can be approximated by different static models)
➡ in case of critical combination or envelope, the maximum utilization is calculated based on the extreme values of internal forces considering the possible combinations of load cases and load factors
➡ customizable, automatically generated design calculation

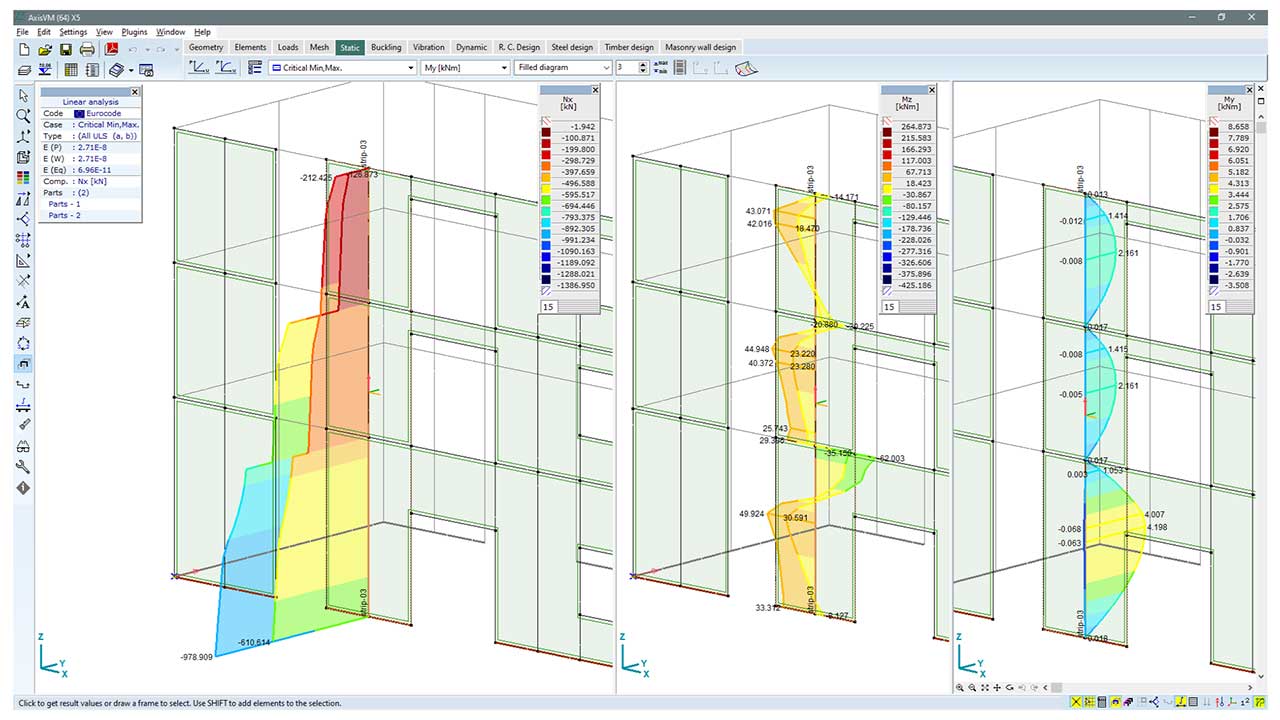

CHECKING WALL SEGMENTS
Walls can be modelled with shell or membrane elements, however, the verification process is based on the use of a virtual strip element defined on a domain which represents a wall segment. The design internal forces are calculated based on the integrated results of a virtual strip.
The masonry design module allows for examining wall sections level by level or as a multi-storey wall system.

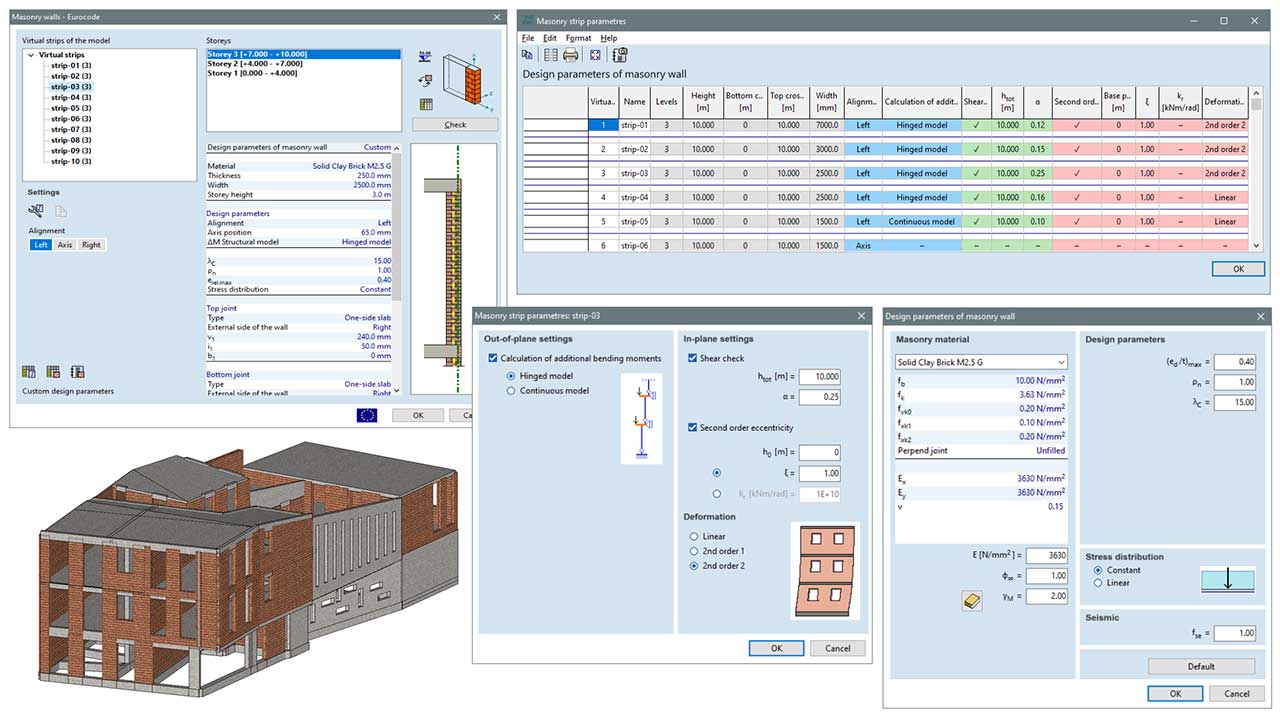

In the masonry design module, the required design parameters are classified into two groups, global parameters, which are valid for the whole section, and individual storey parameters. These parameters are generated automatically based on the model and practical values, however, the customized values must be set manually.
Compact summary tables provide an overview of the values set.

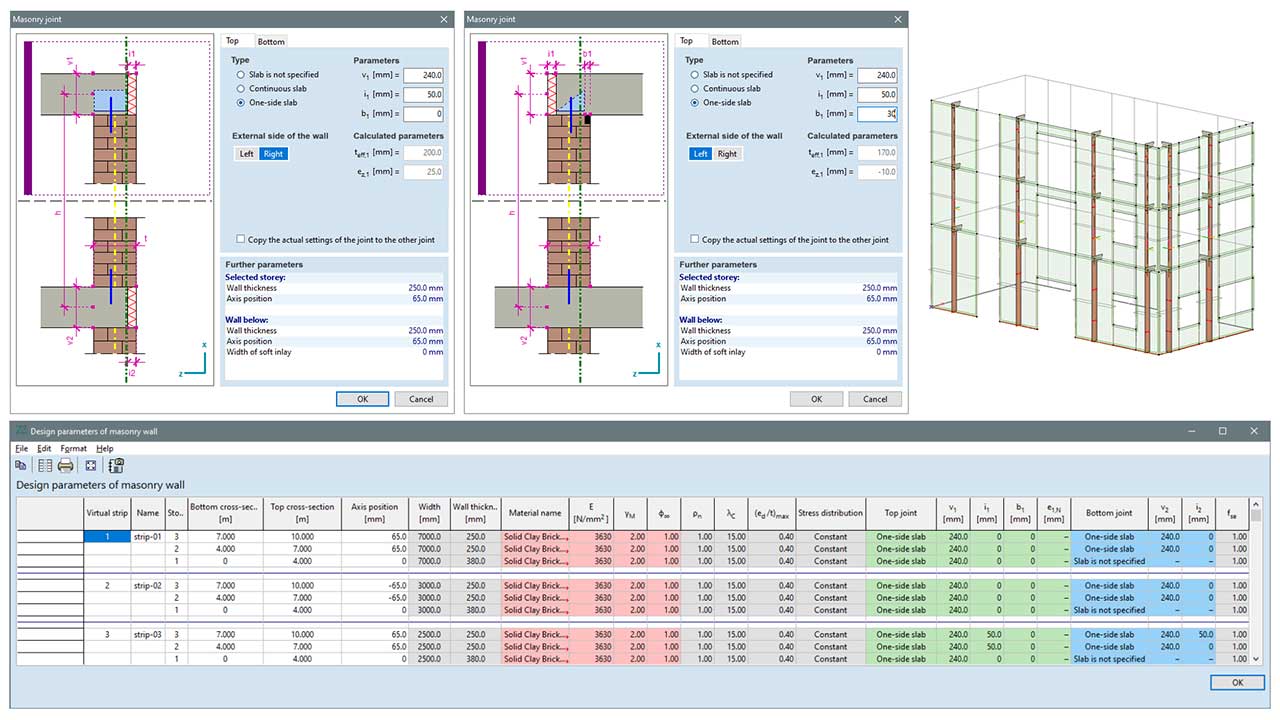

Uniquely, the software allows for considering the eccentricity of masonry joints (structural construction detail of the joint of the wall and slab) in the calculation of the load-bearing capacity of the wall. The joints can be defined individually on each floor. Internal walls with continuous slab and facade walls with one-side slab can be modelled. In the latter case, the thickness of the thermal insulation and the width of the soft inlay can also be specified.
The available approximation methods can estimate the additional bending moments of the eccentric joints without building complicated structural models. The geometric parameters of a wall strip and its joints can also be displayed graphically, which can serve as visual verification of the correctness of the data entry.
RESULT ORIENTED DESIGN INTERFACE
For a transparent and clear working process, the design interface of the module shows all the necessary information simultaneously: the geometric parameters of each storey, the joints settings, the design internal forces, and the result summary.
In the structural model, the masonry utilization component presents the final result of the design process.

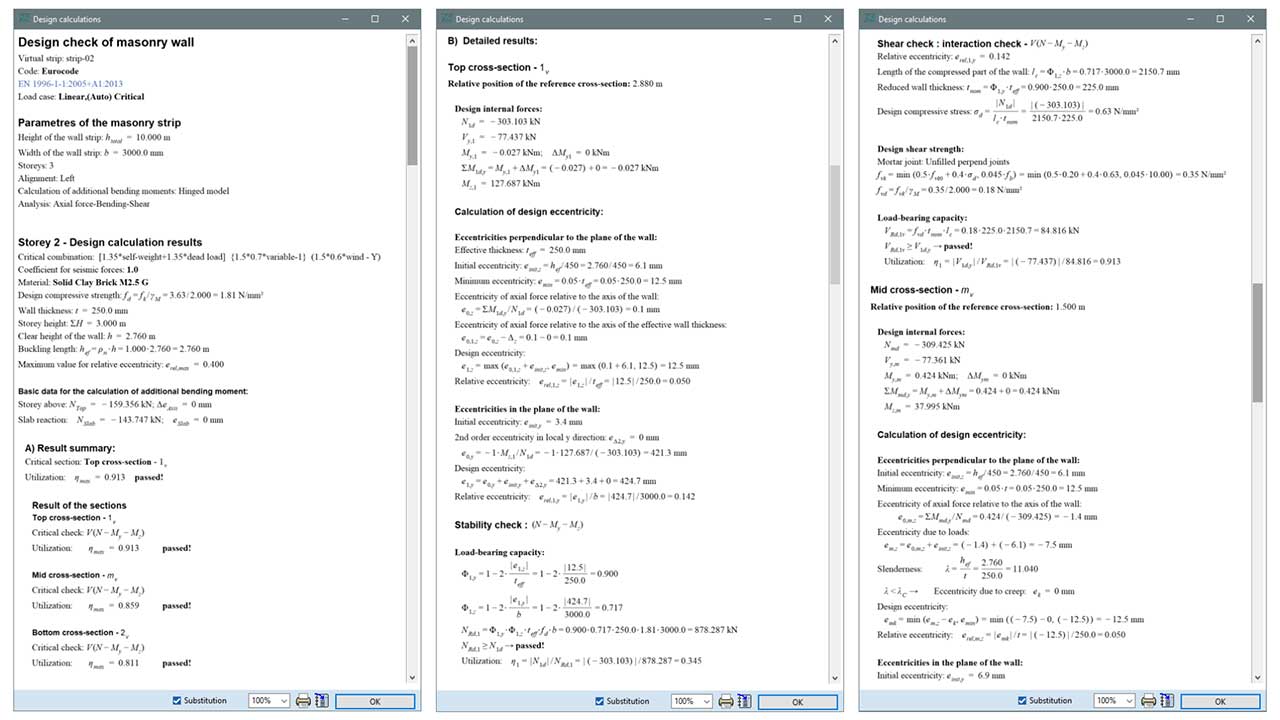

Detailed design calculation and summary tables provide information on the results of the verification, which can also be embedded in the documentation of the model. When modifying any parameters of a wall strip or when the internal forces change, the automatic update function guarantees that the final documentation is ready for publishing.

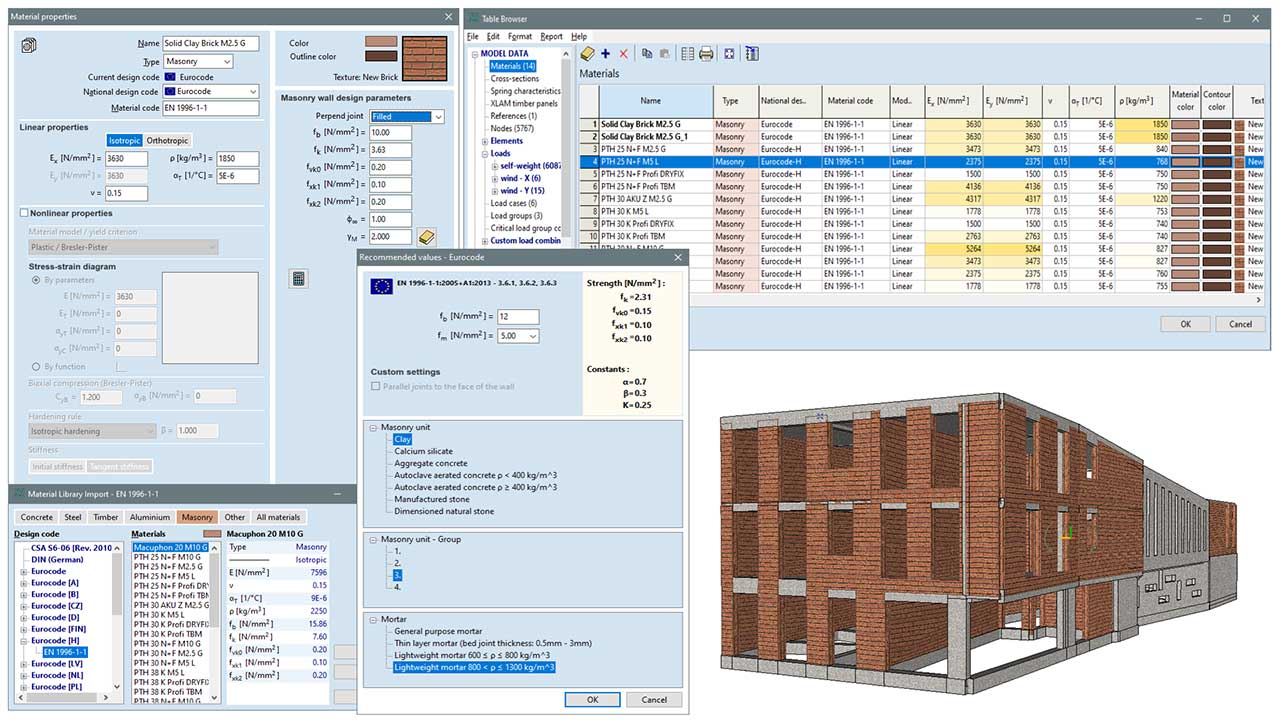

CALCULATION OF MASONRY STRENGTH PARAMETERS
An automatic strength calculator assists with specifying some of the parameters of new masonry materials, according to the guidelines of National Annexes. The strength calculator is available in the Material window (however, this option is not available for every standard).
Masonry structures are the most common type of construction, but their design often involves difficulties due to uncertainties and modelling issues. AxisVM software provides practical help by automating the most common design checks occurred in engineering practice. In the complex module, the entire design process is fully covered, providing interactive and straightforward work and the possibility of fast documentation.
